Increase Productivity for Your Pulping and Papermaking Processes

You have to respond to the challenges of the pulp and paper industry: tightening competition, operations and raw material price increases, and compliance with strict environmental and safety regulations. It is important for you to automate and optimize your paper and pulping processes, extend your current equipment’s lifespan, while keeping improvement costs and shutdown time to a minimum.

What is necessary to maximize safety and increase productivity while reducing energy and lifecycle costs? Seamless engineering solutions. Quad Plus can meet the demands of your pulp and paper production processes.

control system engineering for paper and pulp industry

Why Quad Plus?

Even though you need to maximize operating time, you also should implement changes to increase efficiency on your existing paper machine or winder. How do you do this? By working with a trusted partner that will precisely evaluate your current processes and capture efficiencies through process performance and control automation improvements.

Quad Plus has the paper production process experience to assess your current operations and provide customized solutions to reach your specific paper mill productivity targets. During the design phase, we utilize advanced process control technologies to model and verify system behavior before implementation to mitigate shutdown time. The same engineers that design your solution then perform onsite installation and commissioning of the entire system. This consistency ensures that newer technology and controls work as intended with your existing equipment.

Pulp and Paper Application Challenges

analyze and engineer your pulp and paper production control system

Web Handling Defects

Solving web breaks, reeling wrinkles, slippage, and paper defects at their source can reduce the risk of emergency stops and off-spec product rolls. Evaluating web tension and speed differentials, both in the winder and throughout the paper machine, can help diagnose and prevent flaws. Integrating real-time measurements can ensure that moisture content, web profile basis weight, and thickness parameters are within the target range.

paper production control system cabinet

Production Bottlenecks

Bottlenecks can significantly limit your overall production capacity in both the paper machine and winder. Slowdowns and limitations can take the form of manual slitter adjustments, outdated control technology, equipment capacity limitations, vibration issues, and inefficient drive systems. Such issues need to be identified through machine data analysis and then addressed through automation, design, optimization or control processing, and replacement of legacy equipment where necessary.

turnkey control system services for pulp and paper industry

Safety and Standards

Mitigating hazards and meeting environmental standards are critical steps to improve the safety of your personnel. Additionally, such changes can reduce liability issues and improve production capacity. For example, implementing changes that meet TAPPI and IEEE standards, automating slitter positioning, automating web threading functions, and adding safety features like guarding, fencing, and safety controls can dramatically reduce risk to personnel.

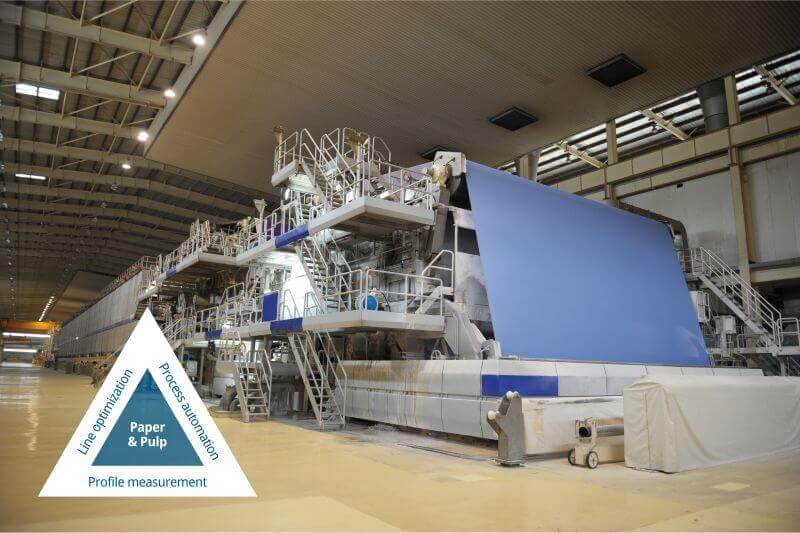

machine and system upgrade for industrial paper production in a pulp mill

Pulp and Paper Line Optimization

You’ve already optimized a section of your line hoping to increase capacity, but then begin experiencing a bottleneck or slow down of subsequent segments. To resolve these unintended consequences, the entirety of the web handling process should be evaluated to determine where improvements must be made.

The evaluation starts with an understanding of all current control systems and process capabilities, new technology potential, and the different characteristics of the product as it feeds through the machine. Then, using advanced process control modeling, solutions can be designed to mitigate control speed differentials that accrue at different sections. The result is to maximize the efficiency of paper manufacturing without causing unforeseen issues further down the line.

Motor and coordinated drive systems should be selected and designed for each section based on normal running load (NRL) and recommended drive capacity (RDC) calculations. Sectional motors load-sharing capabilities also contribute to determining the power required to account for speed differentials in other sections.

Control systems must monitor, process, and respond to operating condition variations in each section. Removing slowdowns and bottlenecks to the winder is critical to optimize performance. High speeds, adjusting motion control, precision tension, and efficient control communication are necessary capabilities. These allow for rapid, dynamic changes to speed and torque while ensuring the product is unwound from parent rolls, slit, trimmed, and rewound without damage.

Pulp and Paper Process Design and Automation

Implementing new process control methodologies can address inefficient actions throughout the entire papermaking process. The results can include extending the life of your existing equipment while reducing changeover times, increasing speed, capacity, and productivity, and stabilizing product quality control.

Automating paper grade and parent reel changes, slitter adjustments, and blade changes can have a significant impact. Plus, rebuilding inefficient sections of the line can supply measurable returns on your investment. Automating risky manual processes also increases overall safety. Your personnel can manage recipes, paper grade changes, and slitter adjustments from outside the paper machine and winder.

industry expertise in process control systems to optimize your engineering project
machine and system upgrade for industrial paper production in a pulp mill

Online Paper Profile Measurements

Web gauging system integration allows for real-time, continuous measurement of paper thickness, basis weight, moisture, machine direction (MD) and cross-machine direction (CD) tension profiles at critical points. Monitoring and correcting profile and quality disturbances improve wet end stability, reduce product variances, chemical usage, and paper web breaks resulting in increased productivity and capacity.

As the quality measurements are scanned, data is stored in a database for further reporting and analysis after production. The reporting tools allow identification and comparison of product qualities to determine the root cause of issues.

Operations and Performance Assessments for Pulp and Paper

analyze and engineer your pulp and paper production control system

Risk Assessment and Safety Validation

Pulp and paper operations are inherently dangerous due to the high speed and rotation of machinery, wet and slippery conditions, slitting and cutoff knives, and high temperatures. For new installations, before rebuilds, or after accidents, a safety audit should be completed to identify issues and suggest changes that can mitigate operator exposure to hazardous conditions. Where possible, automation can manage protection systems and prevent unauthorized programming changes that result in unsafe operations. Validation includes physical testing of line operations to ensure that the expected outcomes are observed.

paper production control system cabinet

Remote Support and Onsite Repair

Support is critical to minimizing downtime. We offer a variety of options for support of your plant systems. Using secure digital access, we can provide remote diagnostics and adjustments for faster troubleshooting and less down time. If onsite resolution is necessary, our onsite service personnel can be dispatched to your paper or pulp mill with the appropriate tools and parts for rapid repairs. We also offer coordinated drive repair and industrial circuit breaker repair at our location. Plus we partner directly with control system part manufacturers to save you time and money.

turnkey control system services for pulp and paper industry

Power Studies

Reducing energy consumption throughout the papermaking process allows your mill to meet united states government energy regulations and decrease production costs. Electricity usage management ensures consistent energy availability at an optimum level for all equipment in the entire mill and improves secondary reactive energy control.

Pulp and Paper Case Studies

We have successfully completed projects for customers who produce containerboard, uncoated recycled paperboard (URB), fine paper, tissue, and towel. To learn more about the specific problems our customers were facing and the solutions we provided, please refer to the case studies linked below.

Services Available

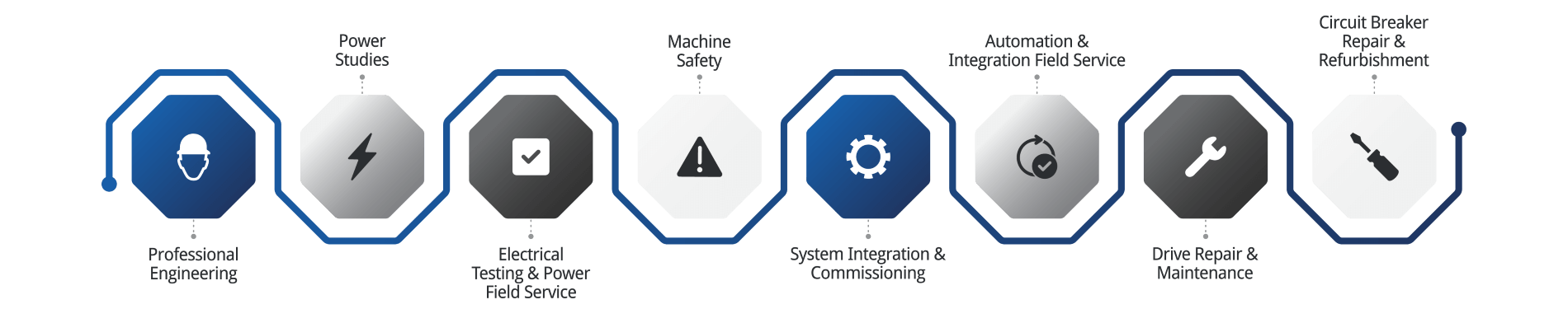

Quad Plus offers a wide variety of services to assist you no matter where you are in the system integration lifecycle. For new builds, we offer design and project management services, for existing plants, we can make your operation run smoother and more efficient. For plants with obsolete control systems, we can assist with retrofits and upgrades.

automation system integration life cycle

Pulp and Paper Industry Solutions

Your internal engineers already have long task lists. Adding projects for upgrades on top of their regular workload can be a considerable demand. Instead, allow the engineering team at Quad Plus to analyze, understand your current processes, and provide practical recommendations for system optimization and implementation. Then we can implement solutions to help you realize your goals for lower operating costs, reduced waste, shortened lead times and improved safety and working conditions for your entire operation.
